Intelligent Control System
DMX Driver Series
Your Location: Home
» LED Control • Driver • Intelligent
» DMX Driver · Power Supply
» DMX Driver Series
Capacity: 30W
Efficiency: ＞90%
Connection of lamp bulb: 1-5(Serie)×2(Parallel)×1W ×3(output)
Waterproof grade: IP67
Input voltage: DC24V
Outer covering: Aluminum alloy/ PCB module
Output current: 600mA×3±5%
Humidity: 10%~95%RH
Transmitting ways: RS-485
Working temperature: -25°~60°
Addressing ways: Auto-addressing
Storing temperature: -40°~85°
Size: L116×W30 ×H20（mm）
Certification: CE FOC ROHS
Efficiency: ＞90%
Connection of lamp bulb: 1-5(Serie)×2(Parallel)×1W ×3(output)
Waterproof grade: IP67
Input voltage: DC24V
Outer covering: Aluminum alloy/ PCB module
Output current: 600mA×3±5%
Humidity: 10%~95%RH
Transmitting ways: RS-485
Working temperature: -25°~60°
Addressing ways: Auto-addressing
Storing temperature: -40°~85°
Size: L116×W30 ×H20（mm）
Certification: CE FOC ROHS
Product Description

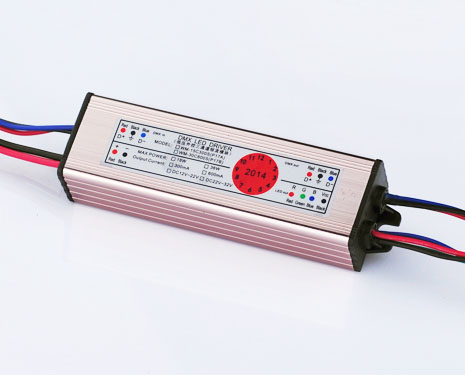

◆ WM-30C600S DMX constant current driver- WM series of regular type
| Capacity | 30W | Efficiency | ＞90% |
| Connection of lamp bulb | 1-5(Serie)×2(Parallel)×1W ×3(output) | Waterproof grade | IP67 |
| Input voltage | DC24V | Outer covering | Aluminum alloy/ PCB module |
| Output current | 600mA×3±5% | Humidity | 10%~95%RH |
| Transmitting ways | RS-485 | Working temperature | -25°~60° |
| Addressing ways | Auto-addressing | Storing temperature | -40°~85° |
| Size | L116×W30 ×H20（mm） | Certification | CE FOC ROHS |
◆ Features:
l It is in accordance with international standard protocol DMX512 (1990).
l Addressing can be done automatically. The signal is in series connection.
l It has protections of overheat, shorted wiring and reversed wiring.
