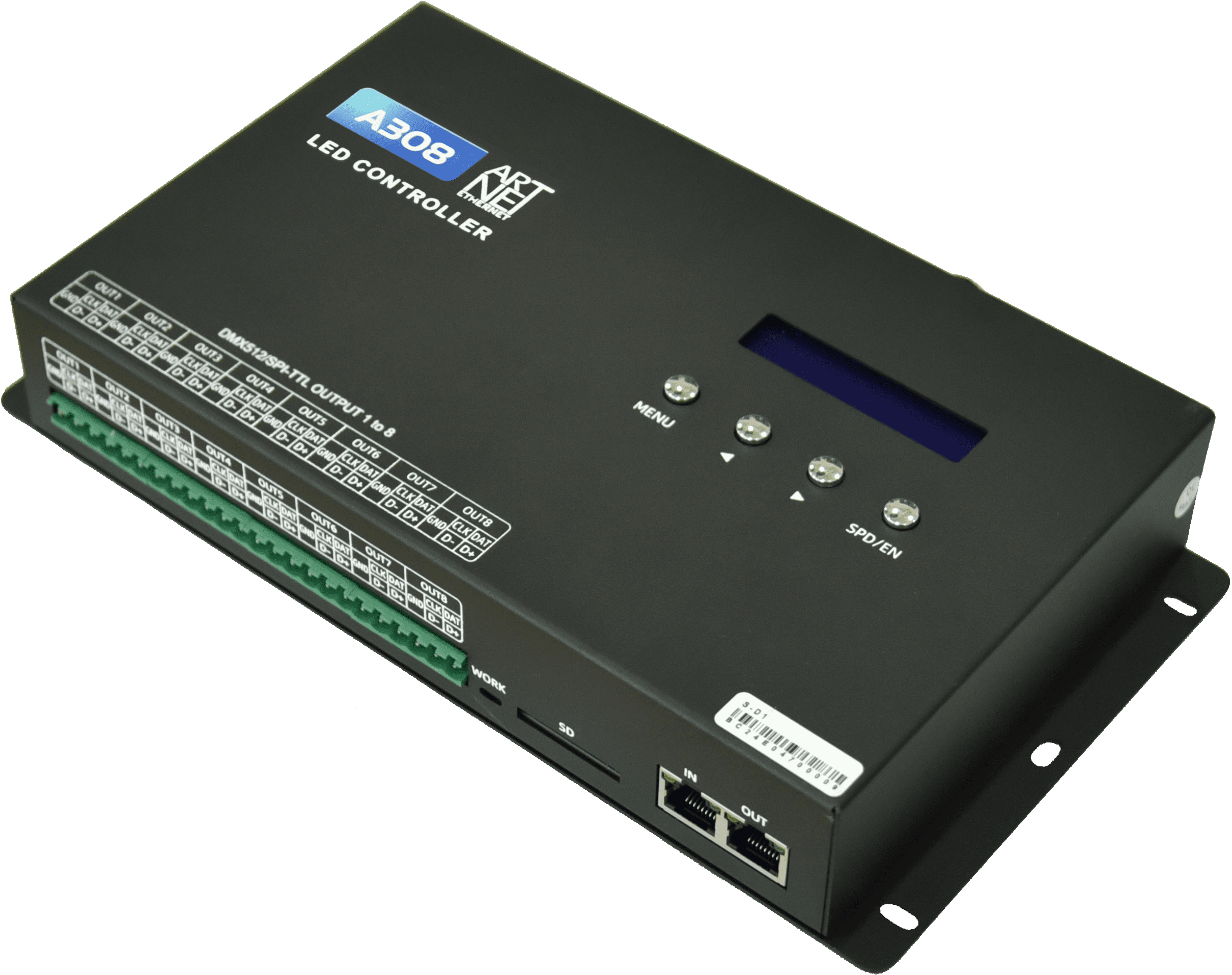

A308 · Art-Net Controller
Protocol: Art-Net/Seekway protocol
DMX Channel：8 Ports x 3072 Channels(6 Universes)
Input Port：Ethernet(RJ45),DMX Console(RJ45/XLR)
Output Port：(TTL&RS-485)×8
Power：less than 10W
Working Temperature：-10℃～55℃
Cover Material: Aluminum alloy
Working Voltage：AC 100V～240V
Weight: 0.976g
Size: 253L × 137W × 45H（mm）
Protocol: Art-Net/Seekway protocol
DMX Channel：8 Ports x 3072 Channels(6 Universes)
Input Port：Ethernet(RJ45),DMX Console(RJ45/XLR)
Output Port：(TTL&RS-485)×8
Power：less than 10W
Working Temperature：-10℃～55℃
Cover Material: Aluminum alloy
Working Voltage：AC 100V～240V
Weight: 0.976g
Size: 253L × 137W × 45H（mm）
Product Description
◆ Feature
· Support using online and offline.
Online: Art-Net protocol (8 Ports x 512 Channels x 6 Universes)
Seekway protocol (3840 Channels x 8 Ports)
Offline: SD card (3840 Channels x 8 Ports)
· Support SPI and DMX lighting fixtures.
· Support master-slave cascading.
· Support lighting addressing online and update SD card effects online.
· Support update firmware online.
· Support connection to mainstream LED edit player, such as Madrix, Resolume.
· Support connection to mainstream control consoles, such as Chamsys, Kingkong, Tight.
◆ Connection Diagram
