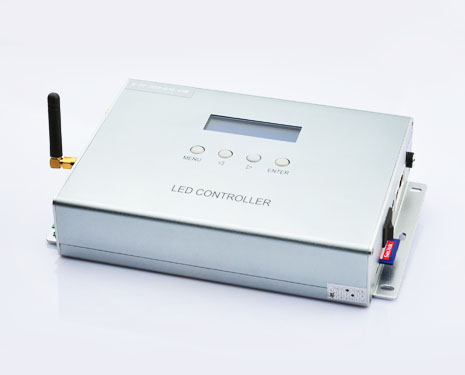

Item：K-SY-308-R/T-WF
Size: 190L×140W×45H mm
WiFi remote control distance: 30m（Without obstacle）
Wireless frequency:2.4GHz
Output channel:8 channels
Output signal: R：RS-485 T：TTL
Output port:Signal terminal
Max power:3W
Working temperature: -15℃～60℃
SD Card: 4G
Cover color:silver
Working voltage:DC7.5V
Power plug:Power adapter
Multi-Controller: Limitless
Size: 190L×140W×45H mm
WiFi remote control distance: 30m（Without obstacle）
Wireless frequency:2.4GHz
Output channel:8 channels
Output signal: R：RS-485 T：TTL
Output port:Signal terminal
Max power:3W
Working temperature: -15℃～60℃
SD Card: 4G
Cover color:silver
Working voltage:DC7.5V
Power plug:Power adapter
Multi-Controller: Limitless
Product Description
◆ Feature
-- Based on 2.4 GHz development. It can control various types of LED lightings.
-- Without a router, the main controller has router function.
-- With self-developed mobile software, user friendly interface, supporting Android devices, such as samsung, HTC etc.
-- Mobile software can control more than one WiFi controller at the same time

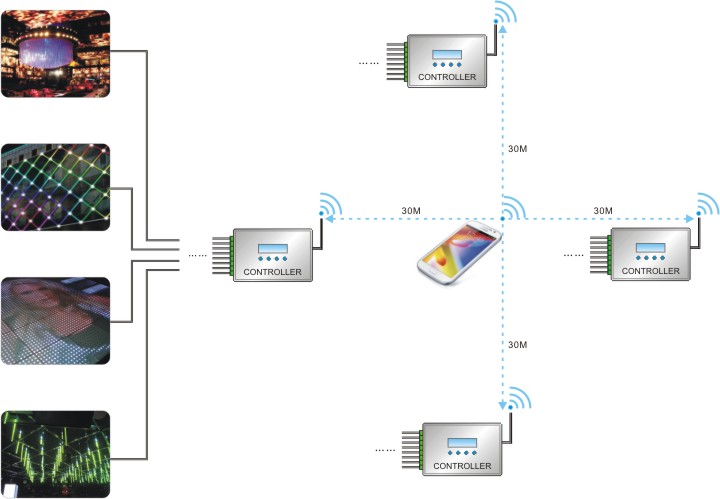

◆ Engineering Wiring Diagram

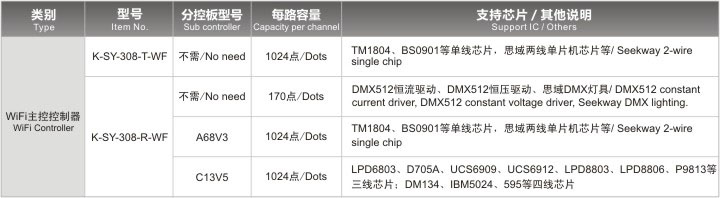

◆ Product Model
