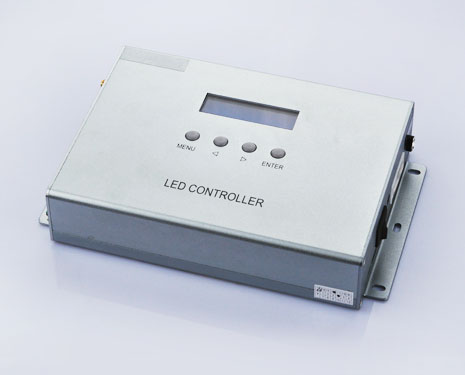

Intelligent Control System
GPS Satellite Synchronization
Your Location: Home
» LED Control • Driver • Intelligent
» LED Control System
» GPS Satellite Synchronization
Item：K-SY-308-R-GPS
Size: 195L×143W×45H mm
Output channel: 8 channels
Output signal: RS-485
Output port: Signal terminal
Max power: 5W
Working temperature: -15℃～60℃
SD Card: 4G
Cover color: Black
Working voltage: AC220V
Synchronization mode: GPS
Multi-Controller Sync: Limitless
Power plug: National standard (or by customer’s request)
Size: 195L×143W×45H mm
Output channel: 8 channels
Output signal: RS-485
Output port: Signal terminal
Max power: 5W
Working temperature: -15℃～60℃
SD Card: 4G
Cover color: Black
Working voltage: AC220V
Synchronization mode: GPS
Multi-Controller Sync: Limitless
Power plug: National standard (or by customer’s request)
Product Description
◆ Feature
-- GPS Satellite synchronization.Short positioning time and accurate positioning
-- No need to connect cables between controllers.After set the mode and speed of all the controllers to be the same,it will go to synchronous system.(No need to restart the controller)
-- Users can program the software and create a program file for each controller

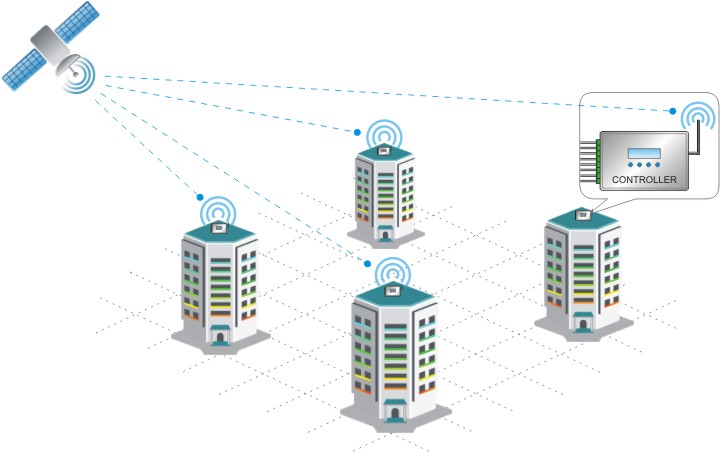

-- GPS Satellite synchronous controller is applicable to he situation that the lighting cann't be connected among buildings,Besides,the synchronous display and the overall effect display are available.
◆ Engineering Wiring Diagram

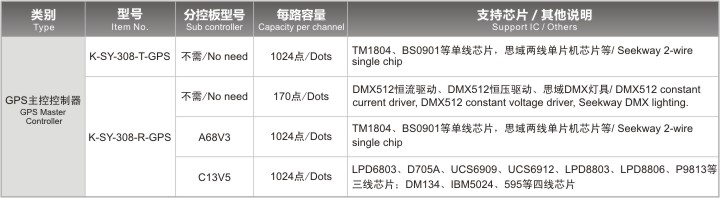

◆ Product Model
